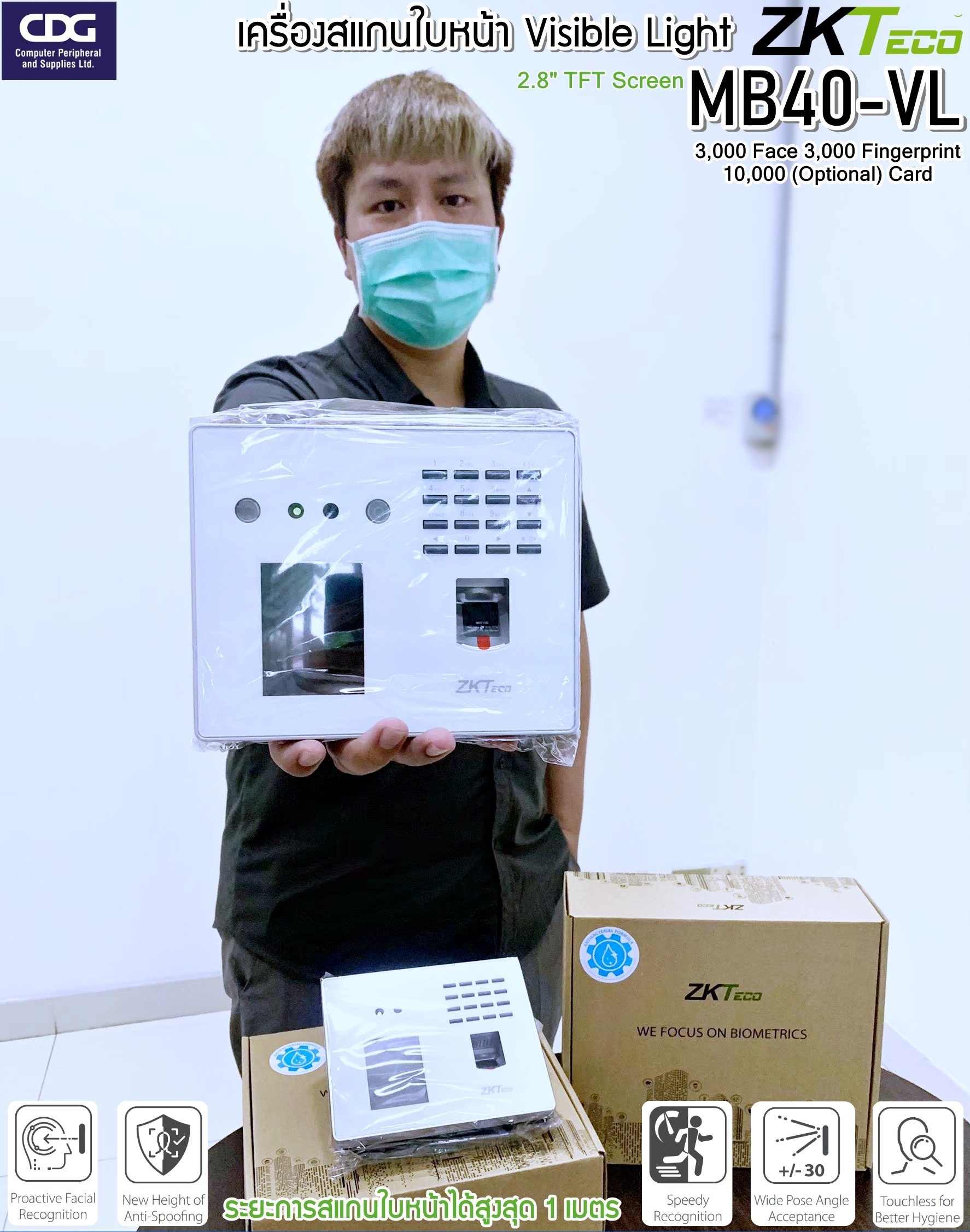

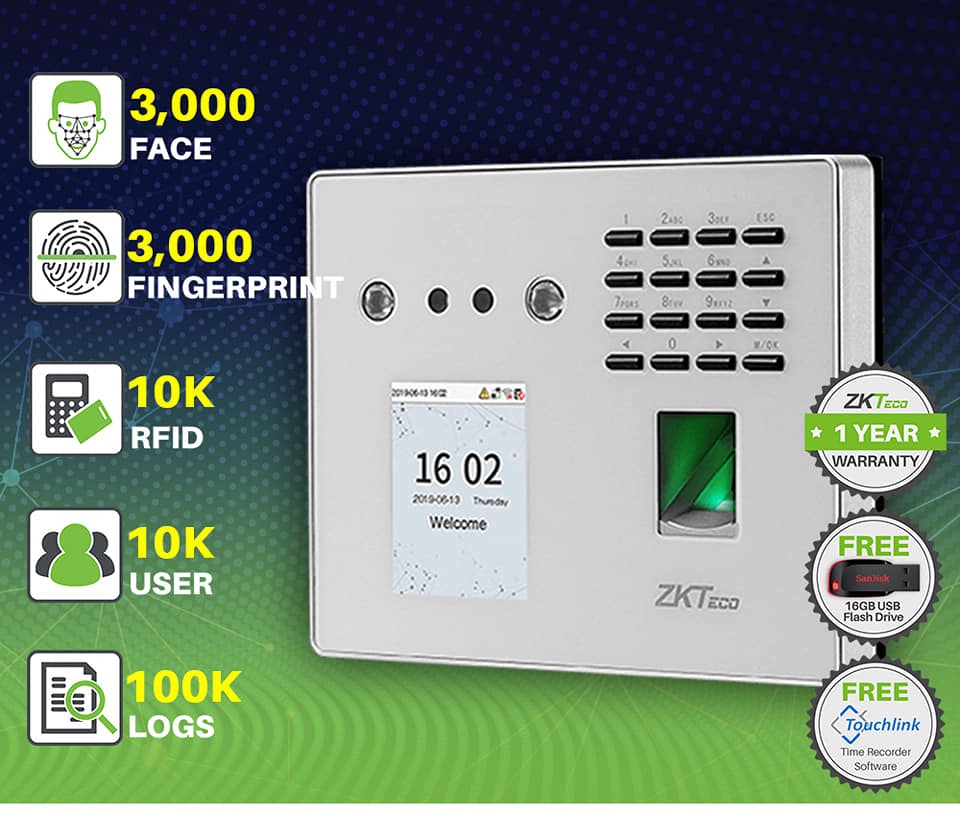

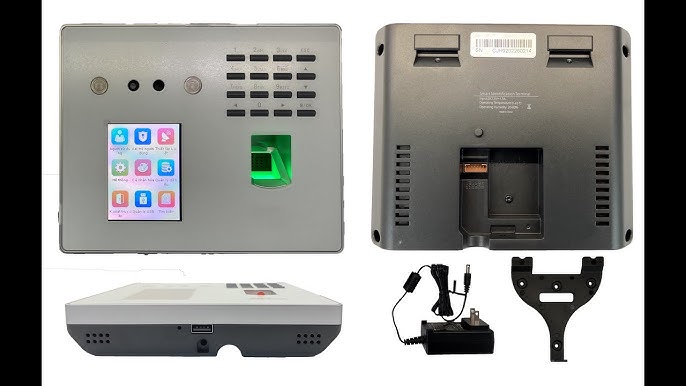

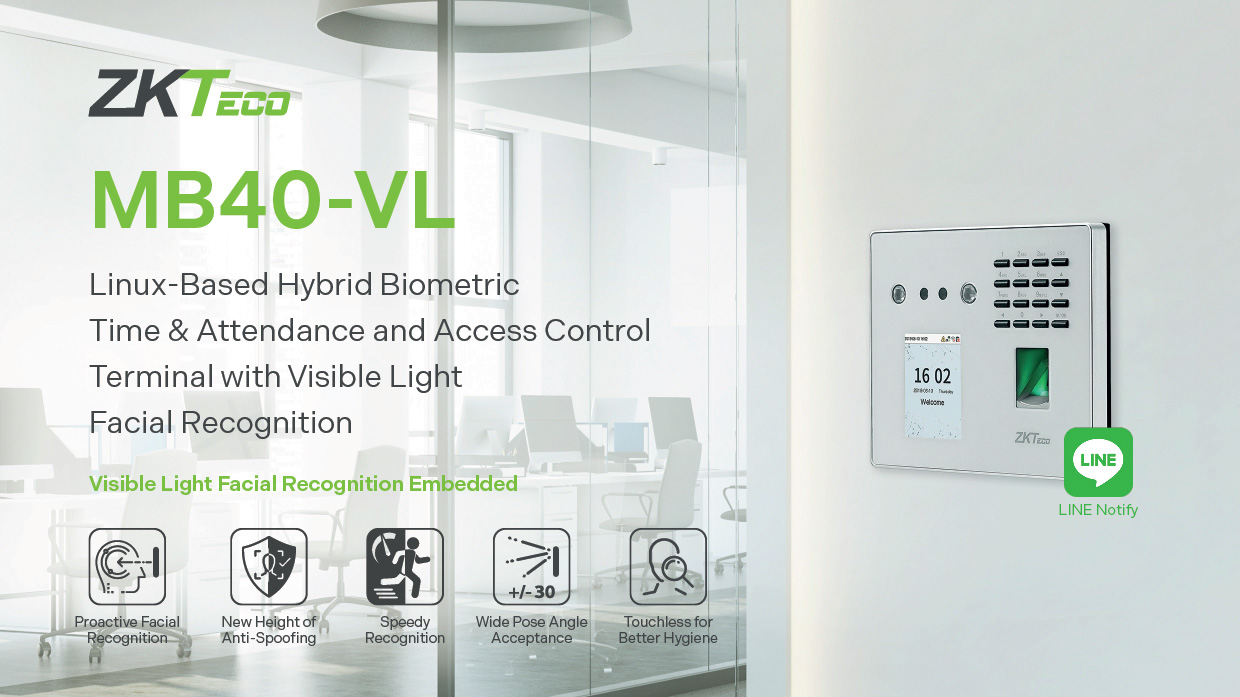

ZKTeco MB40-VL
Time & Attendance and Access Control Terminal
$200.00
Introducing the ZKTeco MB40-VL, a state-of-the-art Linux-based hybrid biometric terminal designed for superior time and attendance tracking as well as secure access control. Featuring cutting-edge visible light facial recognition technology, this sophisticated device ensures high precision and efficiency. With its sleek and modern design, the MB40-VL seamlessly fits into contemporary office environments, offering both functionality and style. Enhance your security infrastructure and streamline employee management with this advanced biometric solution. Available in compact dimensions and an elegant color palette, the ZKTeco MB40-VL is the perfect choice for progressive businesses.
Authentication Modes:
Face Recognition
Fingerprint Recognition
RFID Card
Password
Face Recognition Technology:
Visible Light Facial Recognition
Dual-camera with anti-spoofing technology
Recognition Speed: <1 second
Fingerprint Module:
Sensor Type: Optical
Fingerprint Capacity: Up to 6,000 fingerprints
Face Capacity:
Maximum Capacity: Up to 3,000 faces
Card Module:
Card Type: RFID (125 kHz)
Card Capacity: Up to 10,000 cards
User Capacity:
Total Capacity: Up to 10,000 users
Logs:
Log Capacity: Up to 200,000 transaction records
Display:
Screen Size: 5-inch IPS full-touch LCD screen
Resolution: High-definition for better clarity
Communication:
Interfaces: TCP/IP, Wi-Fi (optional), RS232/RS485
USB Host for data backup and transfer
Power Supply:
Voltage: DC 12V 3A
Operating Environment:
Temperature: -10°C to 45°C
Humidity: 20% to 80% (non-condensing)
Integration Options:
Supports ZKTeco management software for real-time monitoring and reporting
Wiegand Input/Output for access control integration
Security Features:
Anti-spoofing detection for enhanced security
Dual-camera system for enhanced facial recognition accuracy
Build and Design:
Compact, sleek design with durable materials
Wall-mountable
Display
2.8-inch TFT Screen
Face Capacity
3,000
Fingerprint Capacity
3,000
Card Capacity
10,000 (Optional)
Communication
TCP/IP, WiFi (Optional), USB Host
Standard Functions
ADMS, Work Code, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit User ID, Multiple Verify Modes, Schedule Bell
Hardware
900MHz Dual Core CPU, Memory 512MB RAM / 8G ROM, 2MP WDR Low Light Camera, Adjustable LED Supplement Lighting
Operation System
Linux
Interfaces of Access Control
3rd Party Electric Lock, Door Sensor, Exit Button
Optional Functions
125KHz ID Card (EM) / 13.56MHz IC Card
Biometrics Algorithms
ZKFace V5.8 & ZKFinger V10.0
Facial Recognition Speed
≤1s
Power Supply
12V 1.5A
Operating Humidity
20% - 80%
Operating Temperature
0 °C - 45 °C
Dimension
170 138 38.55 (mm)(W*H*D)
